Dry Type Compact 23.12kw Copper Cable Recycling Machine

Brand Name : TMS

Model Number : TMS-400

Certification : CO, ISO, CE

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 15 sets per month

Delivery Time : 15 work days

Packaging Details : Standard exported ply wooden case

Product name : Copper cable recovery machine

Application : Scrap copper cables

Type : Dry type

Power : 23.12kw

Separating rate : 99.9%

Output : 150-200 kg/h

Size : 2700*1900*2300mm

Wire diameter : 0.1-20mm

Voltage : 380 V/ 220 V or Customized

Contact Now

New Design Model 400 Copper Cable Recovery Machine for Cables 0.1-20 mm

Product Details

Copper cable recovery machine is mainly used for recycling waste copper wire, waste wire, waste cable and so on. Simply speaking, it is to crush the waste copper wire, wire and cable first, and then separate the crushed copper and plastic to achieve the distribution and utilization after separation. It is an environmentally friendly mechanical product.

Product Working Principle

1. Crush. First crush the cable into copper and plastic granules. After crushing, the size of granules are generally 2-8 mm.

2. Separation. Using the principle of different specific gravity of metal (copper) and non-metal (plastic), two kinds of media with different specific gravity are separated by air flow and vibration.

Technical parameters

Size	Capacity	Wire diameter range	Power	Voltage	Weight
270019002300 mm	150-200 kg/h	0.1-20 mm	23.12 kw	380/240V	1200kg

Accessories

The spare parts of copper cable recovery machine includes screen mesh and blades in crusher.

Services

1. The machines except spare parts are guaranteed for 12 months.

2. Engineer will be sent to your place to guide how to operate for the production line.

3. We will send you extra set of spare parts and two sets small vibrators.

Dry Type Compact 23.12kw Copper Cable Recycling Machine

Product Tags:

scrap metal granulators

copper cable granulator machine

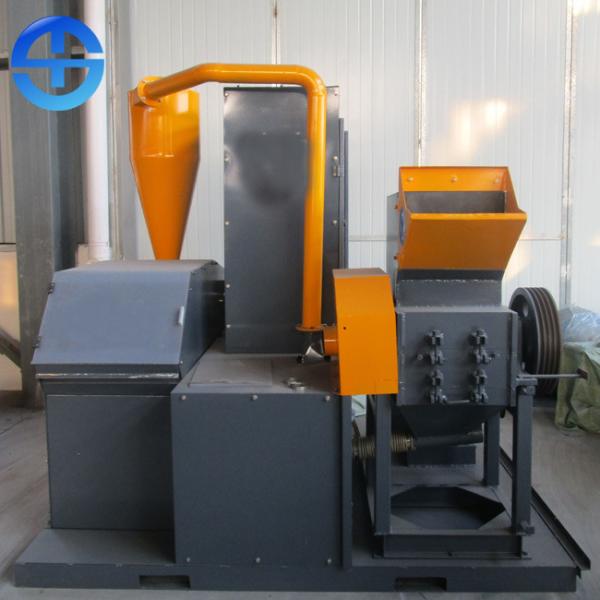

Dry Type Compact 23.12kw Copper Cable Recycling Machine Images
